| General |
|
Product Type
|

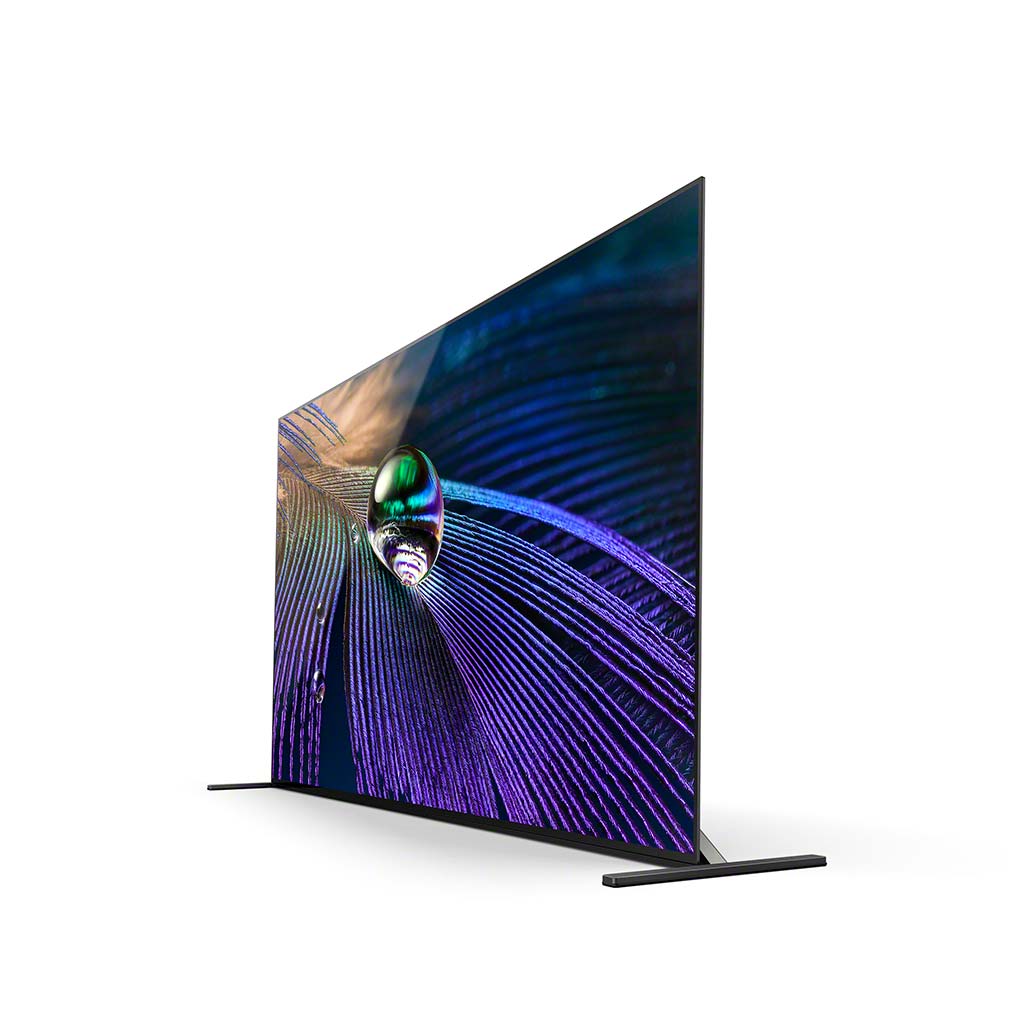

OLED flat panel display - Smart TV |
|
Energy Class
|
Class G |
|
Energy Class (HDR)
|
Class G |
|
Power Consumption (On mode)
|
194 W |
|
Power Consumption SDR (On mode)
|
194 kWh/1000h |
|
Power Consumption HDR (On mode)
|
252 kWh/1000h |
|
Diagonal Class
|
83" |
|
Diagonal Size
|
82.5" |
|
Series
|
BRAVIA XR MASTER Series A90J |
|
Model Year
|
2021 |
|
Platform
|
Android |
|
HDR Capable
|
Yes |
|
HDR Format
|
HDR10, Dolby Vision, HLG10 |
|
HDR Technology
|
HDR Remaster |
|
TV Tuner
|
1x analog, 1x digital |
|
TV Tuner Presence
|
Yes |
|
Video Interface
|
Composite, HDMI |
|
HDMI Ports Qty
|
4 ports |
|
Modes
|
Picture modes, power saving mode, Auto Low Latency Mode (ALLM) |
|
Picture Enhancements
|
Live Color, 4K Upscaling, Dynamic Contrast Enhancer, dynamic backlight control, Pixel Contrast Booster, Netflix Calibrated Mode, Super Resolution |
|
Design
|
Flush Surface design |
|
Dimensions
|
Without stand |
|
Width
|
72.8 in |
|
Depth
|
2.1 in |
|
Height
|
42 in |
|
Weight
|
92.59 lbs |
|
Enclosure Color
|
Titanium black |
|
First Seen On Google Shopping
|
January 2021 |
| Display |
|
Resolution
|
3840 x 2160 |
|
Display Format
|
4K UHD (2160p) |
|
Image Aspect Ratio
|
16:9 |
|
Frame Rate & Enhancement Technology
|
120 Hz Refresh Rate |
|
Response Time
|
8.5 ms |
|
Display Menu Language
|
Multilingual |
|
Additional Features
|
Closed caption, ATSC 3.0 Ready, sleep timer, Chromecast built-in, Dual Database Processing, screen reader, text magnification, Accessibility shortcut |
| Stands & Mounts |
|
Stand
|
Included |
|
Stand Design
|
Tabletop |
|
Stand Color
|
Titanium black |
|
Stand Features
|
Aluminum Edge Stand, 3-way position |
|
Flat Panel Mount Interface
|
400 x 400 mm |
|
VESA Compatibility
|
Yes |
| Digital TV Tuner |
|
Digital TV Tuner
|
ATSC/ClearQAM |
|
HDTV Tuner
|
Yes |
| Video Features |
|
Input Video Formats
|
480p, 1080/24p, 1080/60i, 720/60p, 1080/60p, 1080/30p, 2160/24p, 2160/30p, 720/24p, 720/30p, 2160/60p, 2160/120p, 1080/120p |
|
Electronic Program Guide
|
Digital EPG |
| Media Player |
|
Supported Video Formats
|
MPEG-1, MPEG-2, MPEG-4, Xvid, WMV, ASF, AVI, MKV, MOV, AVCHD, TS, AVC, 3GPP, PS, VC-1, WebM, HEVC, VP8, XAVCS, HDV |
|
Supported Audio Formats
|
MP3, WMA, WAV, AAC, FLAC (Free Lossless Audio Codec), LPCM, ASF, MP4 |
|
Supported Pictures Formats
|
JPEG |
|
USB Port
|
Yes |
|
USB Ports Qty
|
3 |
|
Configuration
|
16 GB |
|
Operating System
|
Android OS |
| Remote Control |
|
Type
|
Remote control |
|
Features
|
Premium Backlit Remote |
| Audio System |
|
Digital Audio Format
|
Dolby Atmos, Dolby Audio |
|
Surround Mode
|
Yes |
|
Sound Effects
|
Dolby Atmos, DTS Digital Surround, 3D Surround Upscaling |
|
Speaker System
|
2 speakers, 4 subwoofers |
|
Additional Features
|
Apple AirPlay support, voice search, Acoustic Surface Audio+ technology, Enhanced Audio Return Channel (eARC), Acoustic Auto Calibration, Voice Zoom 2 |
| Network & Internet Multimedia |
|
Functionality
|
Internet video playback |
|
Connectivity
|
Wi-Fi, LAN, Bluetooth |
|
LAN Protocol
|
Ethernet |
|
Wi-Fi Protocol
|
802.11b, 802.11g, 802.11n, 802.11a, 802.11ac |
|
Bluetooth Version
|
Bluetooth 4.2 |
|
Connect & Share
|
USB Human Interface Device (HID) |
|
Application Store
|
Google Play |
| Connections |
|
Connector Type
|
Composite video input - side RS-232C input - bottom HDMI - side 3 x HDMI - bottom Digital audio output - bottom Headphones - side 2 x USB - side USB - bottom |
| Miscellaneous |
|
Compliant Standards
|
HDCP 2.3 |
| Power |
|
Power Device
|
Power supply |
|
Input Voltage
|
AC 110-240 V (50/60 Hz) |
|
Power Consumption Stand by
|
0.5 Watt |
|
Features
|
On/off timer |
| Dimensions & Weight Details |
|
Dimensions & Weight Details
|
Panel without stand - 72.8 in x 2.1 in x 42 in x 92.6 lbs Panel with stand - 74 in x 16.9 in x 44.8 in |
| Dimensions & Weight (Shipping) |
|
Width (Shipping)
|
77.4 in |
|
Depth (Shipping)
|
8.5 in |
|
Height (Shipping)
|
47 in |
|
Weight (Shipping)
|
130.07 lbs |
